Aluminium wire for vacuum metallising

High-purity aluminium wire, wound jointless on fourteen spool sizes.

Palwal, Haryana — supplying converters and capacitor makers worldwide.

View the full range

Highest purity grade: 99.99 % min
Plastic spool types: 14
Net wire per spool: 2.75 – 14.5 kg
Joints per spool: Zero

Products

Rows of drawn wire coils stacked in a mill yard

1080 Metallising Wire

99.80 % min

Metallising wire

The working grade for film and paper metallising, where deposition rate matters more than the last hundredth of purity.

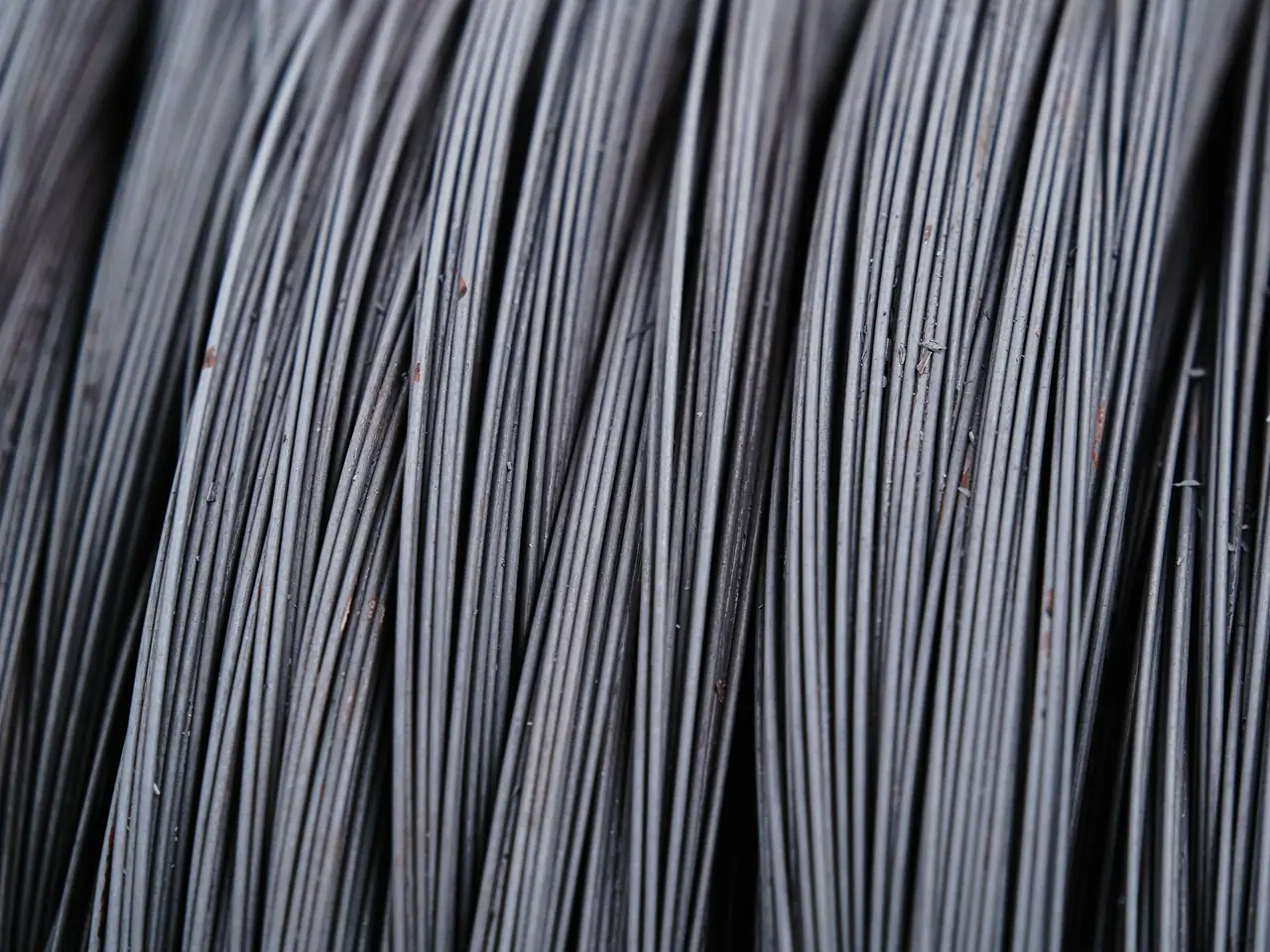

Close-up of the wound strands of a wire coil

1090 Metallising Wire

99.90 % min

Metallising wire

One decimal place up from 1080, for work where the optical density of the deposit is specified and audited.

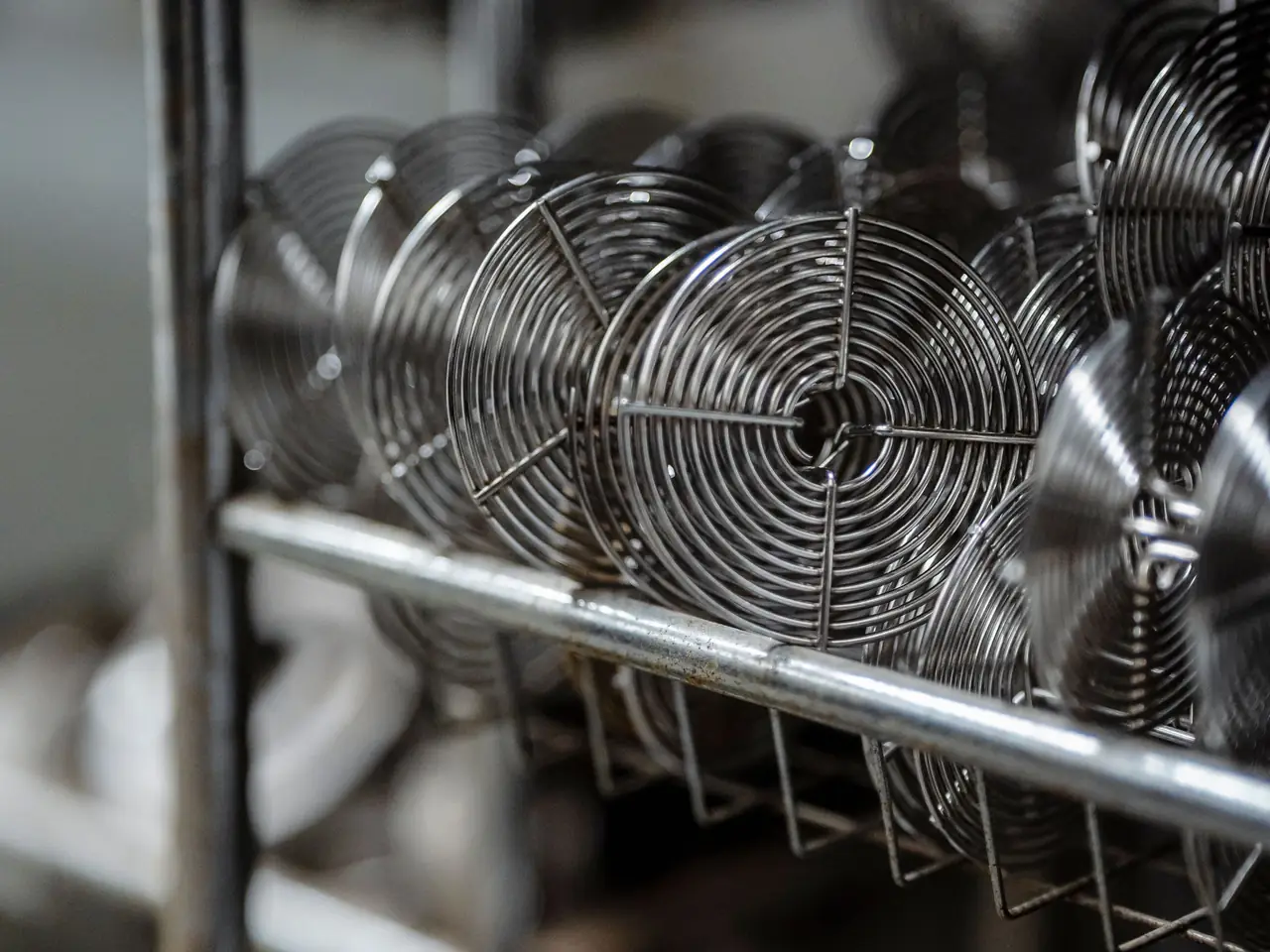

1199 Metallising Wire

99.99 % min

Metallising wire

Four nines. The grade for electronic capacitors, where an inclusion is not a cosmetic defect but a failure.

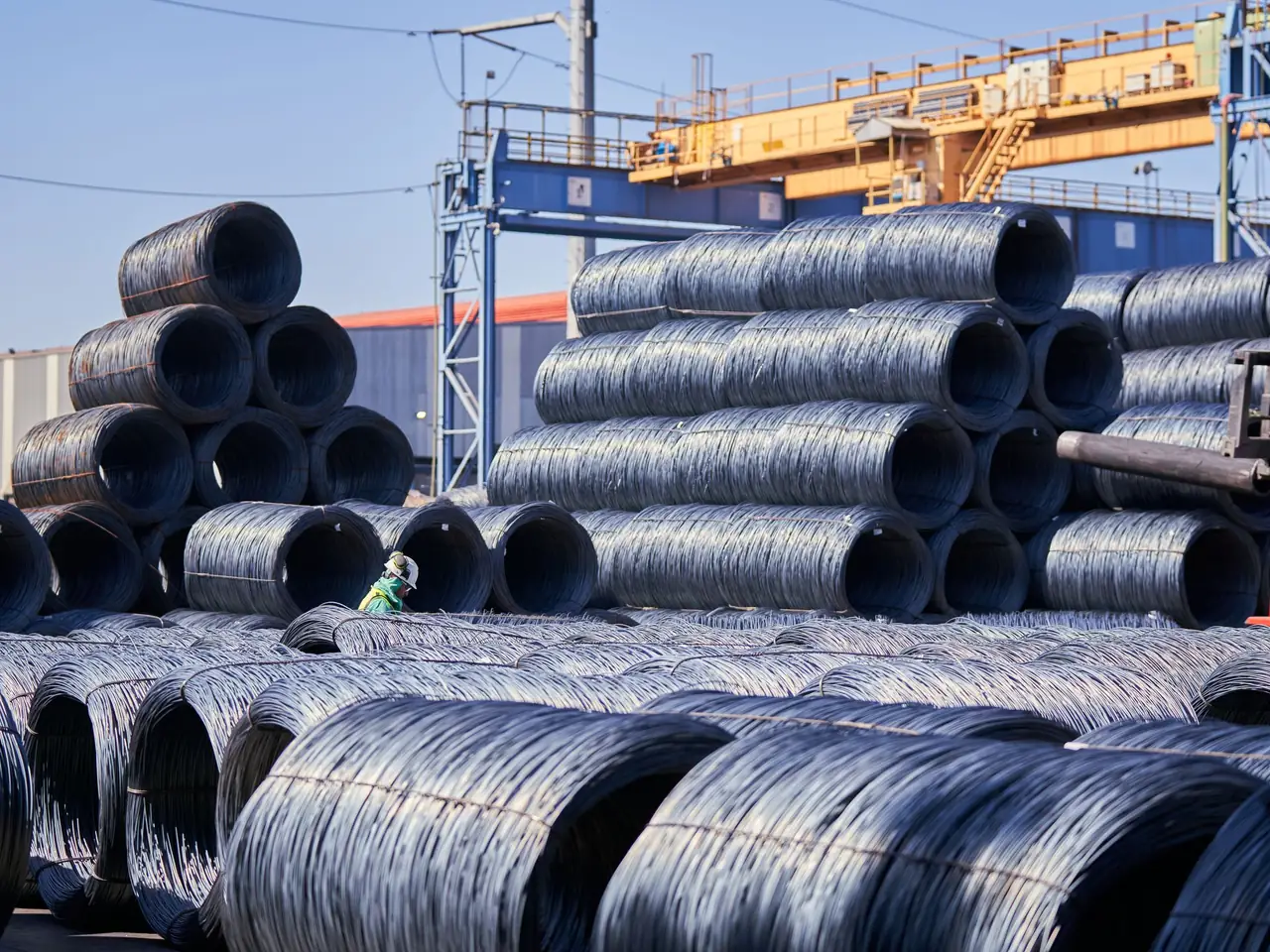

Wire rod coils stacked in a mill yard under a gantry crane

High Purity Aluminium Rod

99.80 % to 99.99 %

Aluminium rod

The stock our own wire is drawn from, supplied as rod to plants that draw their own.

View the full range

Spool programme

Fourteen plastic spool types, from 2.75 kg to 14.5 kg net, layer-wound to run on automatic metallisers without an operator re-threading the wire.

Swiftmet plastic spool programme — dimensions in mm, net wire weight in kg
Spool type	Wire net weightkg	Flange diameterD1 · mm	Core diameterD2 · mm	Bore holeD3 · mm	Width of spoolL1 · mm	Winding widthL2 · mm
SW200	2.75	200	120	38.5	80	67
SW265	6	265	120	38.5	80	67
SW265-1Wide bore version of the SW265	6	265	120	51.5	80	67
SW280	7	280	120	38.5	80	67
SW285	7.5	285	120	38.5	80	67
SW295	8	295	120	38.5	80	67
SW300	8.5	300	120	38.5	80	67
SW305	8.5	305	120	38.5	80	67
SW320	9.5	320	120	38.5	80	67
SW320-1Wide bore version of the SW320	9.5	320	120	51.5	80	67
SW320-2Narrow barrel, for machines with a shorter traverse	8.5	320	100	51.5	71	59
SW360	11.75	360	100	38.5	71	59
SW360-1Wide bore version of the SW360	11.75	360	100	51.5	71	59
SW360-3 (HW)Heavy wound: the largest spool in the programme, for the longest runs between changeovers	14.5	360	100	51.5	85	71

See every dimension

Quality

Where each batch is measured, and what happens when a figure falls outside the customer specification.

How each batch is checked

Company

Swiftmet Wire & Resin Pvt. Ltd. draws high-purity aluminium wire for vacuum metallising at Baghola, in Palwal district, Haryana, and supplies it to film converters, paper metallisers and capacitor manufacturers in India and for export.

About Swiftmet

Contact

Tell us the wire diameter, the purity and the spool type, and we will come back with a price.

Ask for a price
